R-AS40CM BA VP 250236

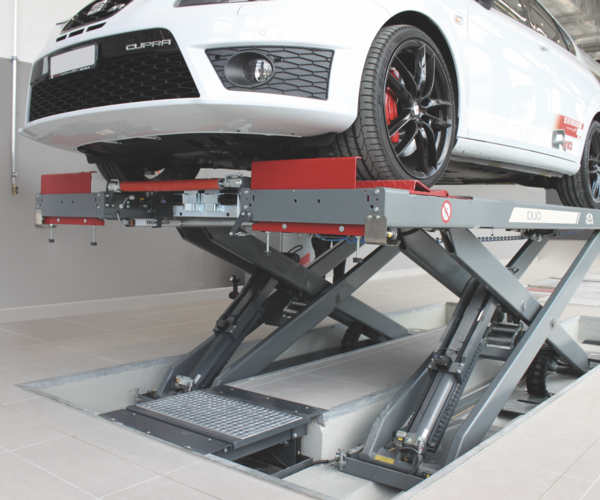

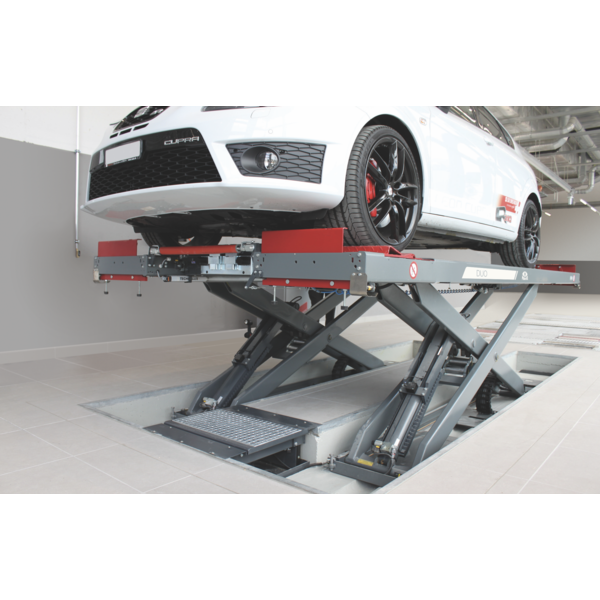

The scissors lift R-AS40CM BA, for flush-floor installation, lifts vehicles of up to 4.0 t and is optimally suited for wheel alignment checks due to its high level of stability. Its robust and well-established construction is designed for maximum service life and for high vehicle throughputs when used for vehicle testing. Protected within the lifting cylinders, the integrated maintenance-free displacement measurement sensor (absolute linear measurement system) eliminates the need for light barriers for synchronisation monitoring and electric switches for lift height detection.

product details / scope of delivery

  • Inground Installation -

-------------------------
Standard Delivery:

  • Scissors lift for inground installation
  • High lateral stability and bending strength, very suitable for wheel alignment
  • Extremely rugged structure, designed for high vehicle throughputs and very long life expectancy
  • Electronic-hydraulic synchronisation of runways and Wheel-Free-Jack (opt.)
  • Distance measurement system integrated into lifting cylinders ("Linear absolute measurement system")
  • Immediate switch-off at (one-sided) collision with obstacle at minimum height difference
  • Comfortable operation due to programmable stop point
  • Durable foil keyboard
  • Latches and cylinder racks as extra safety feature
  • Generous lifting height of 2,100 mm, ideal for installation in strip foundation
  • Pinch point protection by acoustic signal "CE STOP"
  • Anti-corrosion treatment of lock seams, cavity sealing
  • Powder coating:
    • Anthracite Grey, RAL 7016 (Runways, Runway structures, Drive-on ramps, Base frame)
    • Window Grey, RAL 7040 (Scissors, Control Desk)


Standard delivery:

  • Scissors lift, model: R-AS40CM BA
  • Operation desk with control and hydraulic unit
  • 4 roll-off flaps for flush-floor installation
  • 2 pneumatic couplers at runway
  • 8 Cord ears to be used as transport aid
  • Operating manual

Downloads

Sales documents

Brochures
Brochure SLIFT R-AS
DE EN
Brochure (Printable version) SLIFT R-AS print
DE EN
Technical Datasheet
Technical Datasheet R-AS40CM BA
DE EN
Technical Datasheet (Printable version) R-AS40CM BA
DE EN

Technical Data

Technical data:

Load capacity CE4,000 kg
Load capacity CE with Wheel-Free jack4,000 kg
Overall dimensions (LxWxH)5,800 x 2,075 x 240 mm
Drive-on height240 mm
Runway dimensions (LxWxH)4,400 x 617 x 126 mm
Installation depth250 mm
Lifting height max.2,075 mm
Full travel1,850 mm
Raising/Lowering time (load-dependent)approx. 40 s/40 s
Motor power2.5 kW
Working pressure190 bar
Supply voltage3 x 400 V, 50 Hz
Fuse protection16 A time-delay
Pinch point protectionacoustic signal "CE Stop"
Lift weight2,650 kg
Shipping weight2,700 kg
Shipping dimensions (LxWxH)4,500 x 800 x 800 mm
Hydraulic oil qty.40 l
