CM II 4.40 VP 251155

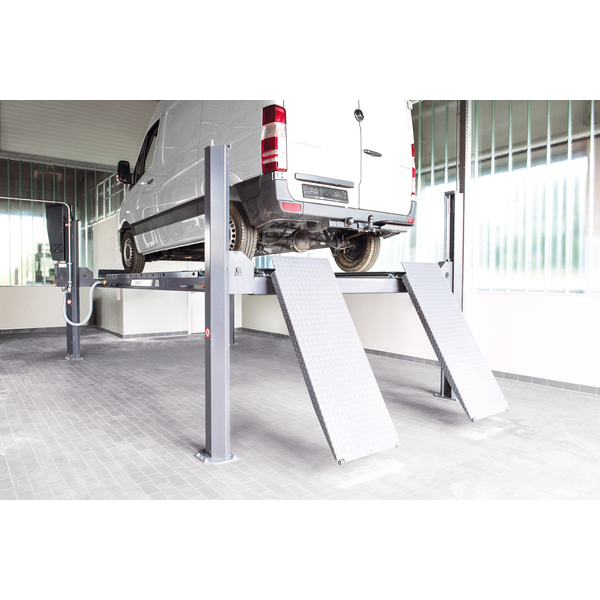

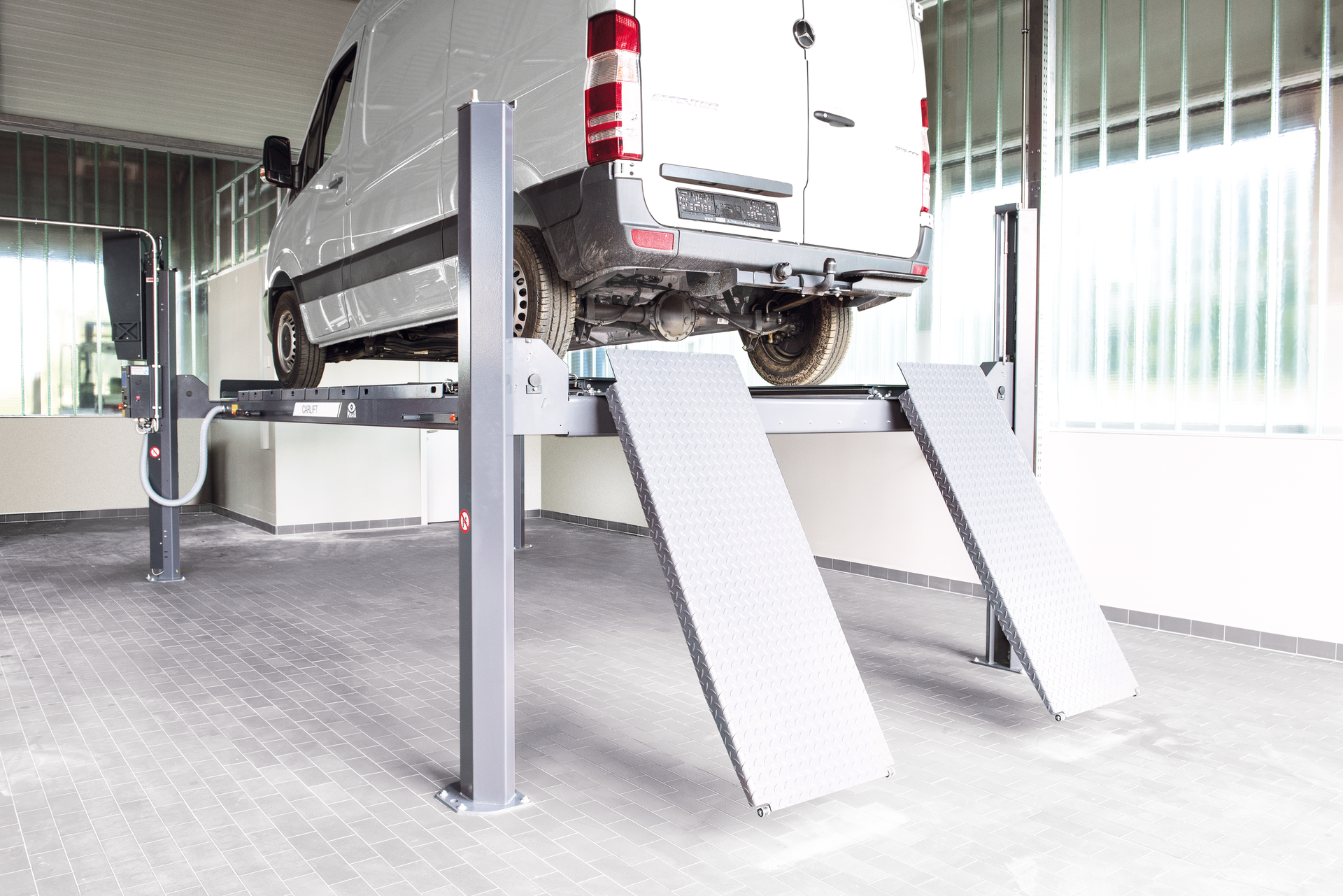

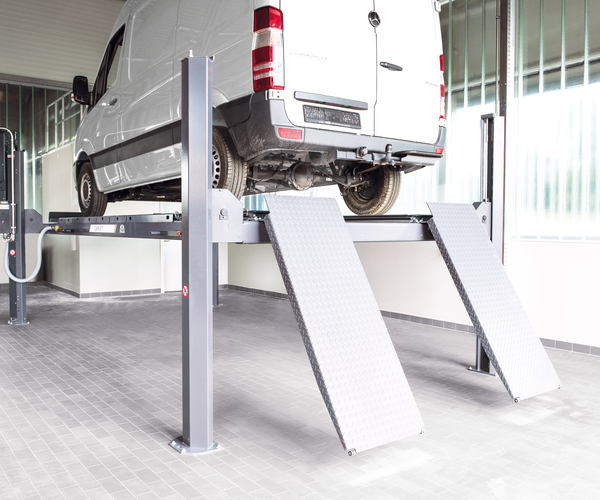

The four post CM II 4.40 lifts vehicles of up to 4.0 t. The extra reinforced plates welded onto the runway guarantee optimum stability. The special runway profile and its reinforced cross beams ensure high flexural resistance.

product details / scope of delivery

Description/Standard delivery:

  • Four post lift with electro-hydraulic drive for above-floor installation
  • Low drive-on height
  • Lowering device for wheel alignment included in standard delivery, with adjustable lock ladder and solenoid-operated latch
  • One runway adjustable (without axle jack)
  • 2 pcs drive-on ramps, 2 pcs roll-off protection bars
  • Packaging included
  • Powder coating:
    • Window Grey, RAL 7040 (Columns)
    • Anthracite Grey, RAL 7016 (Runways, Runway structures, Drive-on ramps, Traverses)

Downloads

Sales documents

Brochures
Brochure SLIFT CM II
DE EN
Brochure (Printable version) SLIFT CM II print
DE EN
Technical Datasheet
Technical Datasheet CM II 4.40
DE EN
Technical Datasheet (Printable version) CM II 4.40
DE EN

Technical Data

Technical Data:

Load capacity4.0 t
Lifting height max1,965 mm
Raising timeapprox. 30 s
Lowering timeapprox. 30 s
Drive-on height145 mm
Drive-on height with wheel-free jack175 mm
Drive-on height with wheel alignment equipment195 mm
Drive-on height with wheel alignment equipment
and wheel-free jack225 mm
Runway width630 mm
Runway length standard4,400 mm
Runway length optional4,800 mm
Total length with runway 4,400 mm5,775 mm
Inside columns............................. 2,870 mm
Overall width3,320 mm
Motor power2.2 kW/50 Hz
Supply voltage3 x 400 V
Fuse protection16 A time-delay
Net weight1,500 kg
Reservoir capacity10 l
Shipping dimensions4,400 x 800 x 1,200 mm
