product details / scope of delivery

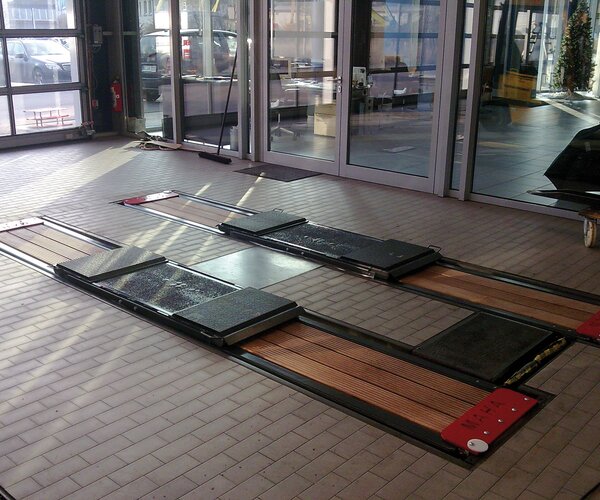

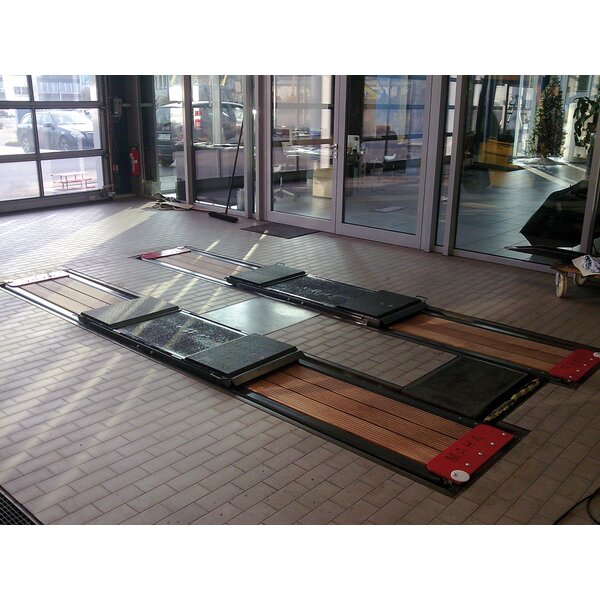

Description Modular Runway:
- Runway as frame construction
- Height 80 mm
- Powder coated sheet metal used as runways
- Surface mounted with drive-on/-off flaps 450 mm
- Frame with powder coating Anthracite Grey (RAL 7016)
Wheel-Free Jack: Wheel-Free Jack w. Support Plates
- Granulate coated support plates
- Continuously adjustable extensions: outside 1400 - 2100 mm
- Installation height above runway: 60 mm
- Sliding plate dimensions (LxW): 450 x 605 mm
- Support olate dimensions: 1400/2100 x 605 mm
- Crossbar w. powder coating Anthracite Grey (RAL 7016)
Description Lifting Unit:
- Two post inground lift
- 'Cylinder in cylinder' lifting system
- External racks, V 2A stainless steel
- Dirt-repellent elevated rack collar
- Emergency lowering unit
- Submerged motor
Standard Equipment:
- Runways 4400 mm
- Lifting unit with integrated secondary lift (travel 600 mm)
- Hydraulic unit (closed version) for inground installation with 10 m motor cable
- Control unit with 2 x 10 m control cable (oil flex)
- Lockable main switch
- Operating instructions and inspection book
Downloads
Technical Data
Technical Data:
| Lifting capacity | 3.5 t |
| Dimensions runway (LxWxH) | 4400 x 630 x 80 mm |
| Total width | 2160 mm |
| Inner drive-through width | 838 mm |
| Ramp, diamond tread | 450 mm |
| Columns center clearance | 1350 mm |
| Lifting height max. | 1974 mm |
| Installation depth | 2390 mm |
| Cylinder diameter | 125 mm |
| Rack diameter | 40 mm |
| Control unit (H x W x D) | 400 x 280 x 120 mm |
| Lifting/lowering time load dependent | approx. 35 sec. |
| Control unit | 2x3 kW, 3 x 400 V, 16 A |
| Hydraulic oil required | 108 l |
Technical Data - Integrated Secondary Lift:
| Lifting capacity | 3500 kg |
| Full travel | 600 mm |
| Cylinder diameter | 90 mm |
| Rack diameter | 40 mm |
| Lifting time | approx. 11 sec. |
