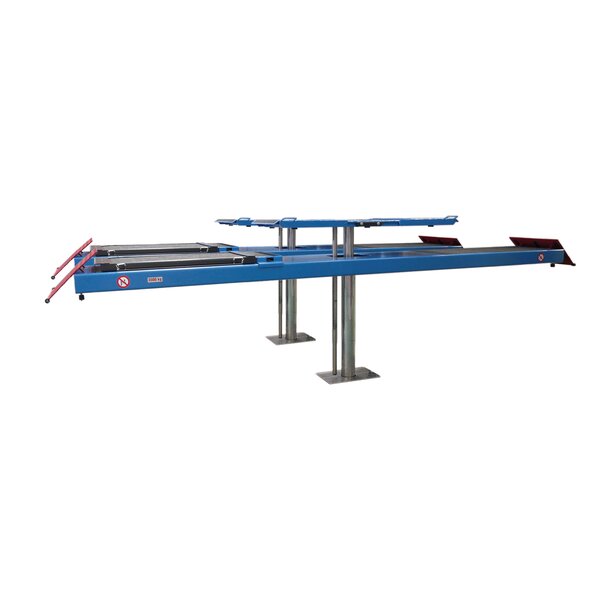

product details / scope of delivery
Description of Runways:
- Runway (w. bended edges) 4400 mm
- Surface mounted with ramps 1000 mm
- Runways with powder coating Anthracite Grey (RAL 7016)
Description of Wheel-Free Jack:
- Granulate-coated support plates
- Continuously adjustable extensions: outside 1400 - 2100 mm
- Installation height above runway: 60 mm
- Dimensions of slide plate (LxB): 450 x 605 mm
- Dimensions of support plate: 1400/2100 x 605 mm
- Crossbar with powder coating Anthracite Grey (RAL 7016)

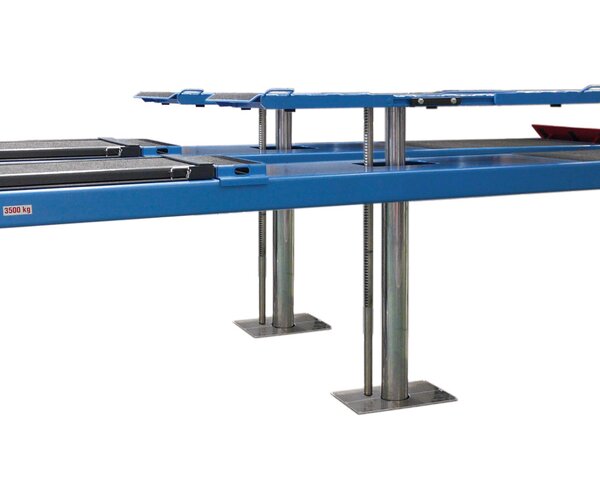

Description of Lifting Unit:
- Two post inground lift
- 'Cylinder in cylinder' lifting system
- External racks, V 2A stainless steel
- Dirt-repellent elevated rack collar
- Submerged motor
- Emergency lowering unit
- CE Declaration of Conformity
Standard Equipment:
- Runways 4400 mm
- Wheel-Free-Jack
- Lifting unit with integrated secondary lift (600 mm travel)
- Hydraulic unit (closed version) for inground installation with 10 m motor cable
- Control unit with 2 x 10 m control cable (oil flex)
- Lockable main switch
- Operating instructions
Downloads
Technical Data
Technical Data:
| Load capacity | 3.5 t |
| Runway dimensions (LxWxH) | 4400 x 617 x 126 mm |
| Total width | 2038 mm |
| Inner drive-through width | 838 mm |
| Ramp, diamond tread | 1000 mm |
| Ram center clearance | 1350 mm |
| Lifting height max | 2000 mm |
| Installation depth | 2390 mm |
| Ram diameter | 125 mm |
| Rack diameter | 40 mm |
| Control unit (H x W x D) | 400 x 280 x 120 mm |
| Lifting/lowering time load-dependent | ca. 35 sec. |
| Power unit | 2 x 3 kW, 3 x 400 V, 16 A |
| Hydraulic oil required | 108 l |
Technical Data - Integrated Secondary Lift:
| Load capacity | 3500 kg |
| Full travel | 600 mm |
| Cylinder diameter | 90 mm |
| Rack diameter | 40 mm |
| Lifting time | approx. 11 sec. |
