R-DSF IV 3.5 U VP 250243

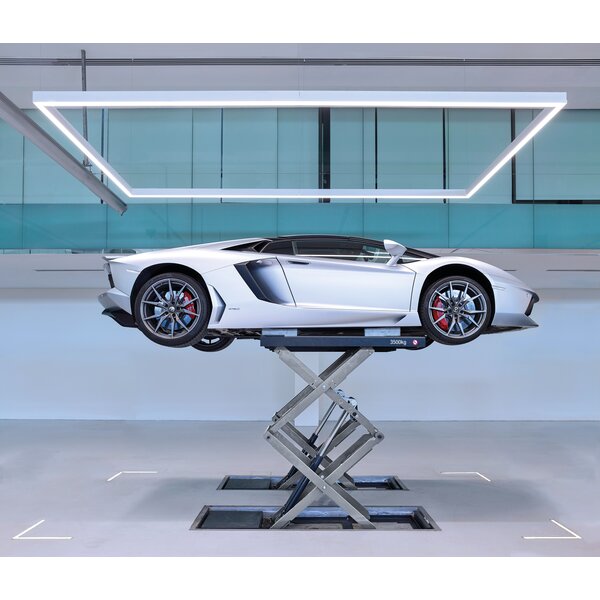

The twin scissors lift R-DSF IV 3.5 U U, for flush-floor installation, lifts vehicles of up to 3.5 t. Thanks to its innovative cylinder lift-out support, it reaches its full lifting power at even the lowest lifting height. Low-noise raising and lowering with speed delay is also possible in the lowest position. The continuously adjustable support plate length ensures comfortable operation, subsequent pushing of the vehicle is not required.

product details / scope of delivery

  • Twin Scissors Lift for flush-floor installation
  • Length of support plate continuously adjustable
  • Flush-floor installation
  • Support plates and extensions with granulate coating
  • Automatic synchronization and high safety level ensured by displacement sensors ("Linear Absolute Measurement")
  • 2 cylinders on each side, double safety (redundancy)
  • Full load capacity ensured also in lower lifting range
  • Smooth extension and retraction of cylinders in bottom position by innovative cylinder support system
  • No mechanical connection between the scissors, no trip edges
  • No compressed air necessary
  • Pinch point protection through audible warning signal "CE-Stop"
  • Manual lowering function
  • High lateral stability
  • Electro-static powder coating:
    • Anthracite Grey, RAL 7016 (Support Plates, Base frame)
    • Window Grey, RAL 7040 (Scissors, Control Desk)
    • Floor frame with two layer powder coating

Standard Equipment:

  • Twin Scissors Lift, Model: R-DSF IV 3.5 U, for flush-floor installation
  • Foundation inserts to extend the support plates in fully lowered position
  • Hot-dip galvanized shim plates for installation frame
  • Upright control desk with controls and power unit
  • Hydraulic hoses for 2 m distance between lift and power unit
  • User's manual
  • Packaging included

Downloads

Sales documents

Brochures
Brochure SLIFT R-DSF
DE EN
Brochure (Printable version) SLIFT R-DSF print
DE EN
Technical Datasheet
Technical Datasheet R-DSF IV 3.5 U
DE EN
Technical Datasheet (Printable version) R-DSF IV 3.5 U
DE EN

Technical Data

Technical Data:

Load capacity CE3500 kg
Raising/Lowering time (load-dependent)approx. 35 s/35 s
Operating pressure270 bar
Installation height115 mm
Support plate width605 mm
Support plate length1550 - 2100 mm
Total width of foundation (recommended)2000 mm
Max. lifting height (measured from floor)1815 mm
Motor power2.2 kW
Power supply3 x 400 V/50 Hz
Fuse protection16 A time-delay
Pinch point protectionaudible warning signal
Total weight incl. packagingappr. 900 kg
Shipping dimensions (L x W x H)2100 x 760 x 710 mm
Hydraulic fluid requiredappr. 9 l
