product details / scope of delivery

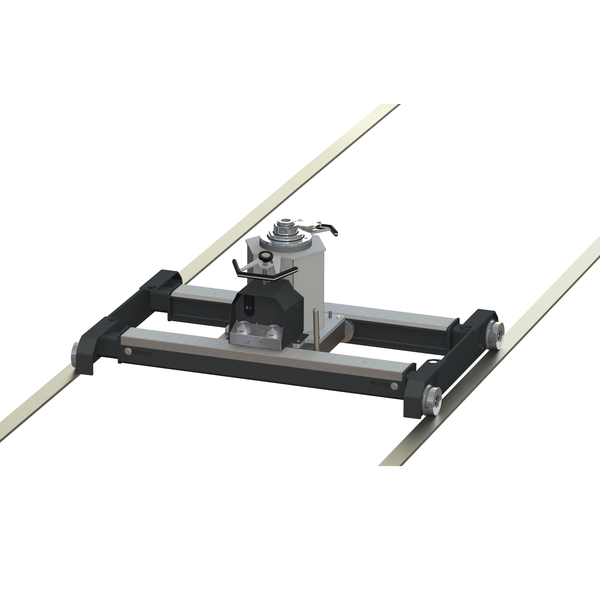

3-stage telescopic, rail-guided, floor-running

Description:
Automatic axle and transmission jack
with pneumatic motor and fast control
in slim design specifically for dismantling assemblies
and lifting vehicles up to 16.5 t

Control:

  • Unique synchronised telescopic lifting cylinder for quick load lifting with fast control
  • Efficient fast control for UP and DOWN movement Integrated as standard
  • Precision, user-friendly foot control using compact and robust operating unit for quick lift and load lift
  • Delicate and precision lowering of the pit jack with tried & tested system with integrated dead man's control
  • Telescopic stages protected against corrosion thanks to the Venturi effect (separation of hydraulic oil and airflow)
  • Integrated cover to protect against unintentional operation


Design:

  • Precision floor-runnable, rail-guided pit jack for easy movement (needle bearings included as standard) of built-on units, including while loaded
  • Telescopic carriage for precision adjustment of pit jack lane width to fit the rails in the work pit
  • Precision-guided track rollers (flange guided)
  • Optional wall-guided rollers with flat steel possible
  • Secure jack holding brake in transverse direction across the work pit
  • Integrated inspection window for checking oil quality and quantity of the pit jack
  • Optimised removal of the dismantled units thanks to low construction height of the jack due to ideal arrangement of the lifting unit in the carriage
  • With its non-slip coating the carriage can be used as a secure working platform for ergonomic reasons
  • Corrosion-resistant piston rods thanks to self-lubrication
  • High-quality powder-coating protects against corrosive liquids and elevates quality look and feel on a lasting basis


Scope of delivery:

  • Pit jack with hydro-pneumatic automatic control system
  • Carriage with four interior flanged rollers for rails
  • Standard support lugs 120 x 120 mm
  • Operating instructions
  • EC conformity certificate
  • Colour: Jack base frame RAL 7040
    • Attachments and carriage RAL 7016

Downloads

Sales documents

Brochures

Technical documentation

Operating Instructions

Technical Data

Technical data:

Load capacity (CE)16,500 kg
Fast stroke power600 kg
Stroke distance1200 mm
Lifting levels3
Min. pick-up height674 mm
Max. lifting height1874 mm
Slide rail width inner dimensions825 – 1738 mm
Carriage adjustable range230 mm
Roller rest width44 mm
Roller rest incline0 %
Min. slide rail (W x H)50 x 10 mm
Max. parallelism deviation slide rails10 mm
Roller diameter (at the flange)133 (148) mm
Support diameter inside/outside45/80 mm
Piston rod diameter80/115/170 mm
Oil quantity/quality27.5 l / HLP-D 10
Drive350 l/min. 7-10 bar
Operating pressure190 bar
Weight572 kg
