product details / scope of delivery

2-stage telescopic, rail-guided, suspended

Description:

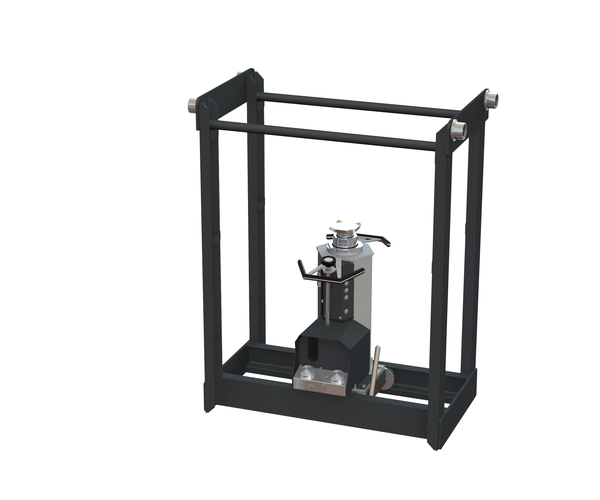

Automatic axle and transmission jack
with pneumatic motor and fast control
in slim design specifically for dismantling assemblies
and lifting vehicles up to 16.5 t

Control:

  • Unique synchronised telescopic lifting cylinder for quick load lifting with fast control
  • Efficient fast control for UP and DOWN movement integrated as standard
  • Precision, user-friendly foot control using compact and robust operating unit for quick lift and load lift
  • Delicate and precision lowering of the pit jack with tried & tested system with integrated dead man's control
  • Telescopic stages protected against corrosion thanks to the Venturi effect (separation of hydraulic oil and airflow)
  • Integrated cover to protect against unintentional operation


Design:

  • Suspended telescopic pit jack specifically for difficult floors in work pits, with custom-made carriage adapted specifically to the individual work pit based on dimension sheet
  • Precision-guided track rollers (flange guided)
  • Secure jack holding brake in transverse direction across the work pit
  • Integrated inspection window for checking oil quality and quantity of the pit jack
  • Optimised removal of the dismantled units thanks to low construction height of the jack due to ideal arrangement of the lifting unit in the carriage
  • Corrosion-resistant piston rods thanks to self-lubrication
  • High-quality powder-coating protects against corrosive liquids and elevates quality look and feel on a lasting basis


Scope of delivery:

  • Pit jack with hydro-pneumatic automatic control system
  • Hanging carriage with four rollers for rails
  • Standard support lugs 120 x 120 mm
  • Operating instructions
  • EC conformity certificate
  • Colour: Jack base frame RAL 7040
    • Attachments and carriage RAL 7016

Downloads

Sales documents

Brochures

Technical documentation

Operating Instructions

Technical Data

Technical data:

Load capacity (CE)16,500 kg
Fast stroke power400 kg
Stroke distance1200 mm
Lifting levels2
Min. pick-up heightMade-to-measure
Pit jack depth for roller slide railMade-to-measure
Max. lifting height above roller slide rail Made-to-measure
Slide rail width inner dimensions700 – 1200 mm
Carriage adjustable rangeMade-to-measure
Roller rest width40 mm
Roller rest incline8 % / 4.6°
Max. parallelism deviation slide rails10 mm
Roller diameter (at the flange)80 (95) mm
Support diameter inside/outside45/80 mm
Piston rod diameter80/115 mm
Oil quantity/quality14.5 l / HLP-D 22
Drive350 l/min. 7-10 bar
Operating pressure in block235 bar
Weight410 kg
