product details / scope of delivery

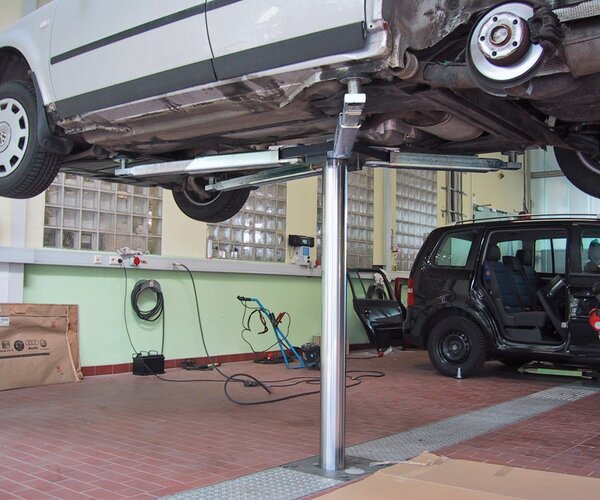

One-post inground lift with swing arm X-supports,
to pick up vehicles in the sill area.
Suitable for cars, pick-up points underneath the vehicle

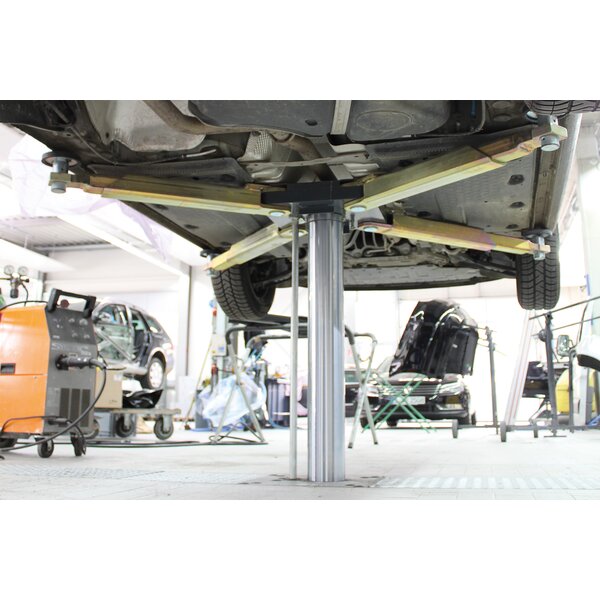

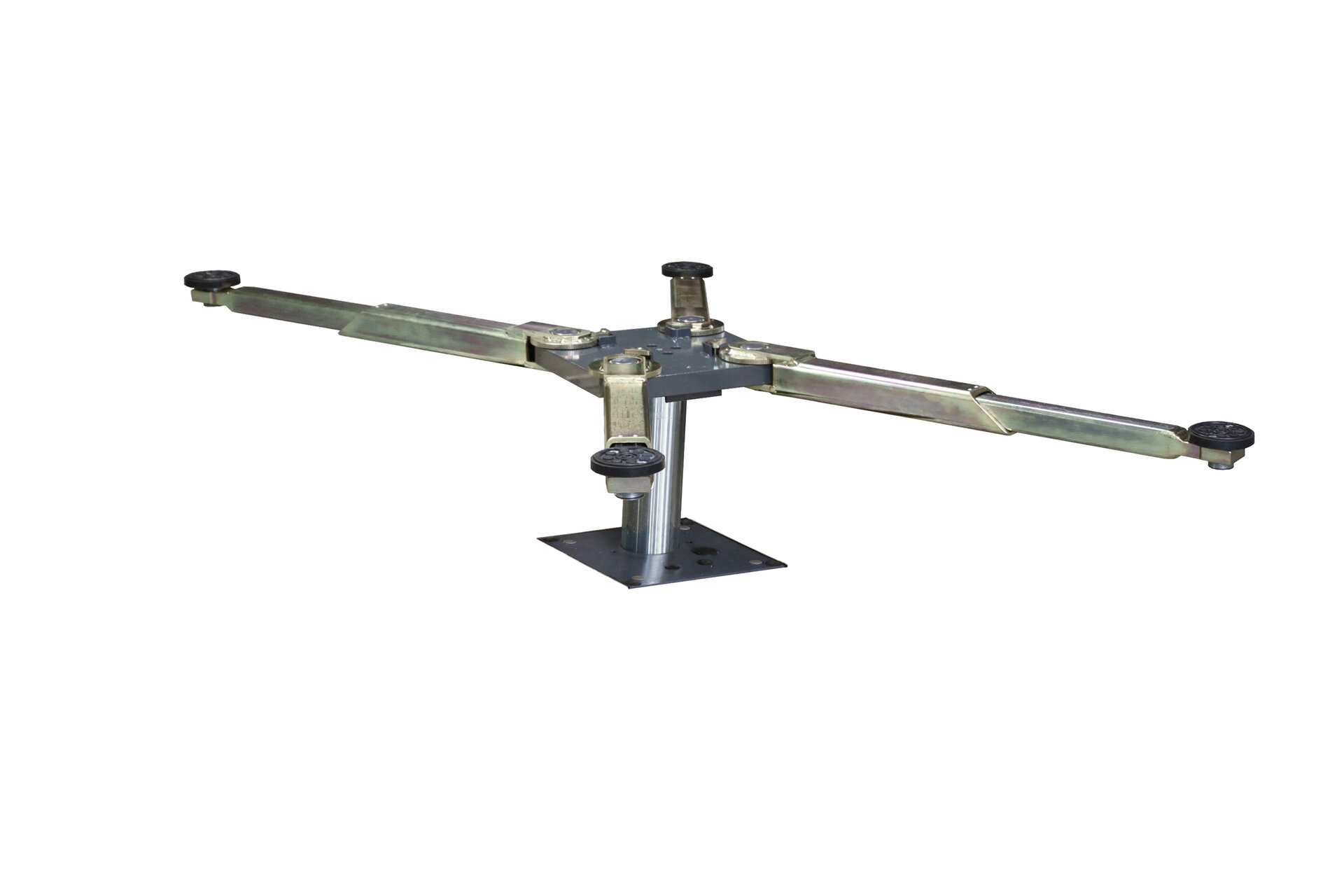

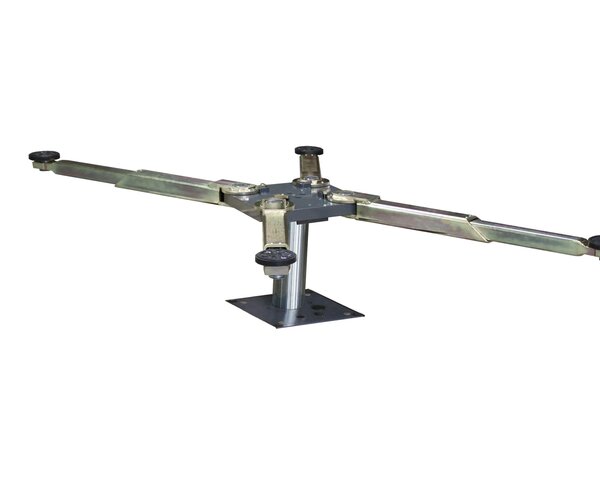

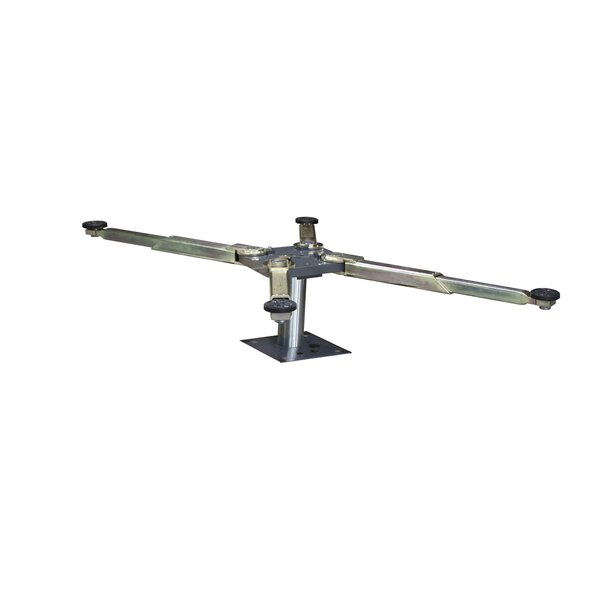

Swing arm support (X):

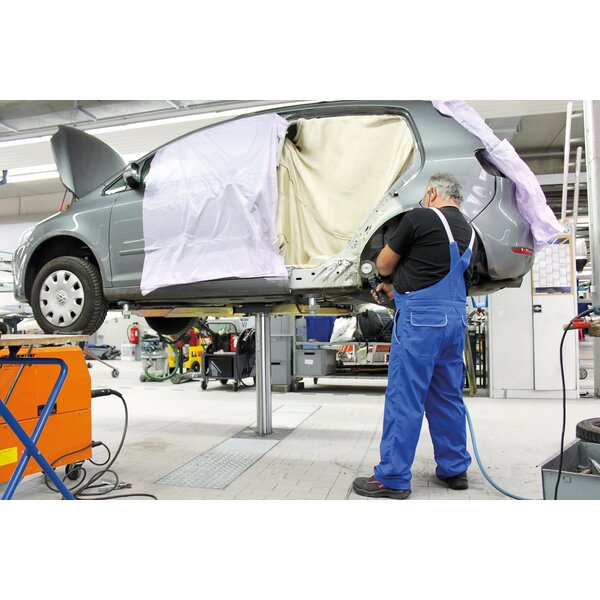

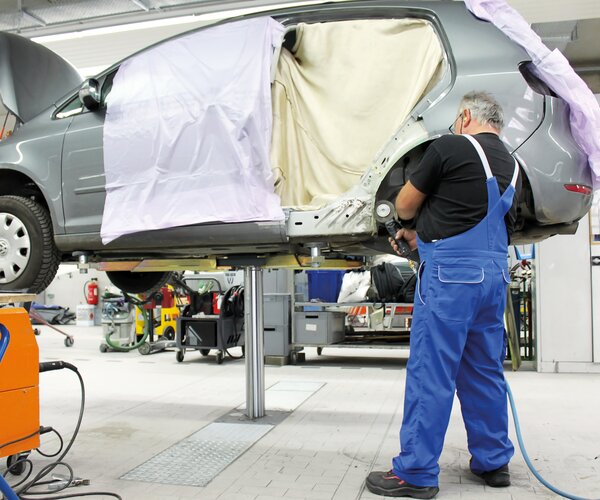

  • Optimum vehicle pick-up with maximum accessibility, especially for repairs from outside in the sill or engine area
  • Double telescopic swing arm support for stepless adjustment
  • Swing arm extensions with min. height of 104 mm
  • Precise pick-up of vehicles due to height-adjustable support discs with thread and plug-in system
  • Multiflexible plug-in system for support extenders or special supports for various vehicle types for secure, positive-locking vehicle fixation in the product range
  • Comes standard with fully rubberised support plate without metal parts to exclude electrical conductivity
  • Automatically engaging support arm lock

SOLIST lift unit:

  • Corrosion-proof hydraulic piston, self-lubricating since it dips into hydraulic oil with each stroke
  • Low-noise operation due to very quiet motor in the installation box
  • Optionally usable with mineral organic oil with high durability
  • Electronic lift control with visual error display
  • Hydraulic power unit inside installation box (standard), can optionally be positioned outside
  • Simple, suspended installation of the lift, ensuring advantageous force transmission into the hall floor
  • High lifting/lowering speeds are guaranteed in a load-dependent range of 30 – 35 seconds
  • Integrated, battery-operated emergency lowering
  • Optimum workplace ergonomics thanks to optional, standard-independent control system via energy box or flush-mounted switching system

Scope of delivery:

  • Swing arm support (X) with swing arm carrier, anthracite grey (RAL 7016), and galvanised swing arm extensions
  • Medium pressure lifting unit with clamping system
  • Cable and fastening material
  • Installation box/frame not included in scope of delivery
  • Emergency-down cable for connection to the control box
  • Control unit with 10 m control cable (oil flex cable)
  • Lockable main switch
  • Pinch point protection by CE-stop instead of foot deflector
  • Operating instructions
  • EC/UKCA Declaration of Conformity


Sales documents

Technical Datasheet

Technical Data

Technical data:

Load capacity CE3000 kg
Adjustment range of support discs84 - 105 mm
Installation height104 mm
Lifting height max.1968 mm
Lifting/lowering time, load-dependentapprox. 35/35 s
Hydraulic oil quantity (not incl. in delivery) approx. 50 l
Oil qualityHLP-D 22
Operating pressure32 bar
Recommended installation boxVZ 972554
Control unit (H x W x D)320 x 220 x 120 mm
Drive power3.0 kW
Fuse protection gG16 A
Power supply3/N/PE 400 V 50 Hz
