product details / scope of delivery

Description:

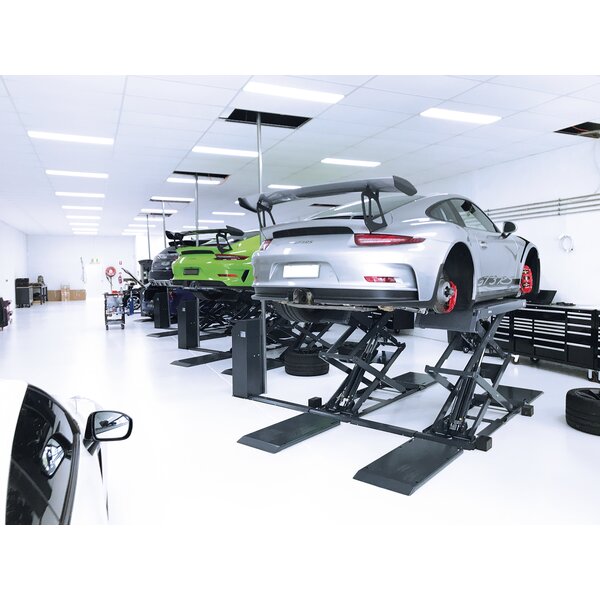

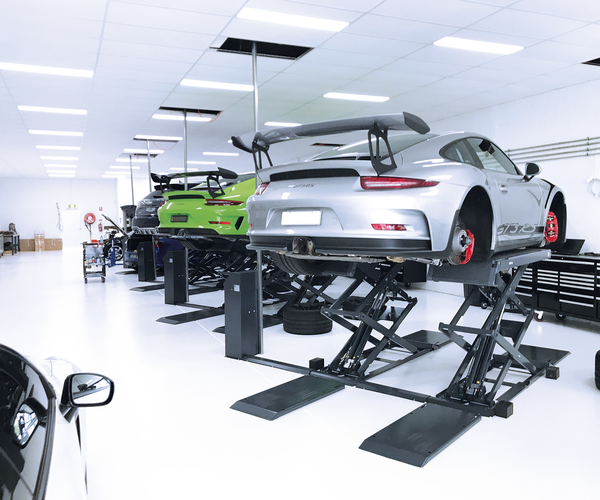

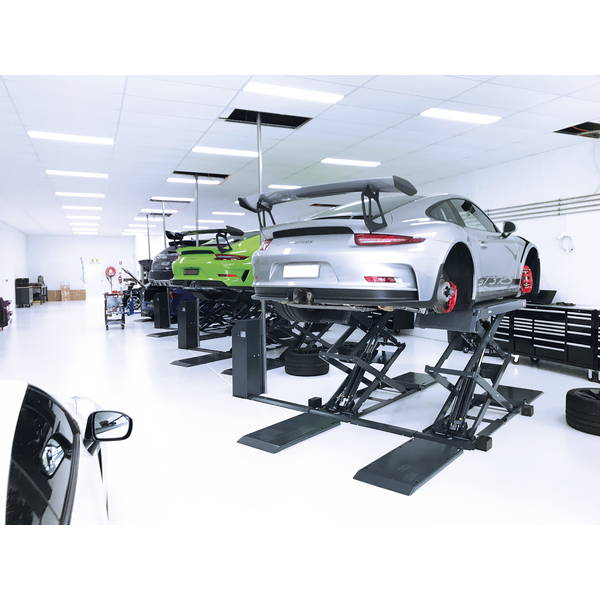

  • Low-profile Twin Scissors Lift for above-floor installation
  • Low drive-over height
  • Length of support plates continuously adjustable
  • Support plates and extensions with granulate coating
  • Automatic synchronization and high safety level ensured by displacement sensors ("Linear Absolute Measurement")
  • 2 cylinders on each side, double safety (redundancy)
  • Full load capacity ensured also in lower height range
  • Smooth extension and retraction of cylinders in bottom position by innovative cylinder support system
  • No mechanical connection between the scissors, no trip edges
  • No compressed air necessary
  • Pinch point protection through audible warning signal "CE-Stop"
  • Manual lowering function
  • High lateral stability
  • Electro-static powder coating:
    • Anthracite Grey, RAL 7016 (Support Plates, Base frame)
    • Window Grey, RAL 7040 (Scissors, Control Desk)
    • Floor frame with two layer powder coating

Standard Equipment:

  • Twin Scissors Lift, Model: R-DSF IV 3.5 A
  • 2 drive-over wedges
  • Upright control desk with controls and power unit
  • Hydraulic hoses for 2 m distance between lift and power unit
  • Cover plate for hydraulic hoses
  • User's manual
  • Packaging included

Downloads

Sales documents

Brochures
Technical Datasheet

Technical Data

Technical Data:

Load capacity CE3500 kg
Raising/Lowering time (load-dependent)approx. 35 s/35 s
Operating pressure270 bar
Installation height105 mm
Width of support plate605 mm
Length of support plate1550 - 2100 mm
Total width (recommended)1955 mm
Max. lifting height1920 mm
Motor power2,2 kW
Power supply3 x 400 V/50 Hz
Fuse16 A time-delay
Pinch point protectionaudible warning signal
Total weight incl. packagingapprox. 900 kg
Shipping dimensions (L x W x H)2100 x 760 x 710 mm
Hydraulic fluid requiredappr. 9 l

  • (not included in standard delivery)
